Control Power Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Differential Switch Time Delay:<200 ms
Dimensions:approx. 29.6cm H x 10.7cm W x 20.5cm L
Insulation Class:Class I
Phase Current Input:1 A and 5 A secondary
RTD Inputs:3 wire, 100 Ω platinum, 100 Ω nickel, 120 Ω nickel, 10 Ω copper
Weight:approx. 10 lbs

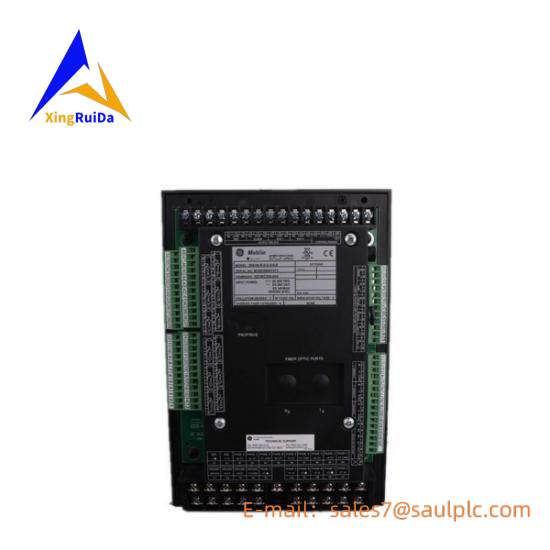

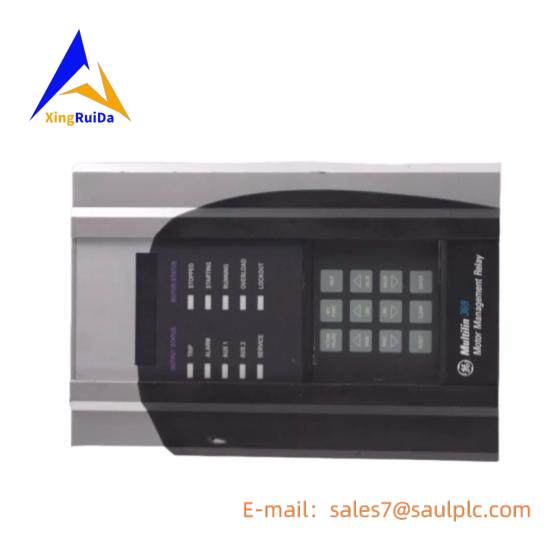

This robust Motor Management Relay from GE Multilin is equipped with an array of advanced features designed specifically for managing and protecting three-phase motors.
It includes protection against a range of faults, including undervoltage, reverse power, and mechanical jams.
With its built-in RTD ports, this relay offers real-time monitoring and diagnostics for efficient operation.
Furthermore, the inclusion of optional features like Ethernet connectivity and an enhanced faceplate enhance its versatility and ease of use.
The 369-HI-R-0-0-0 Relay can significantly reduce maintenance costs by enabling predictive maintenance through continuous monitoring and event reporting.
Designed for medium to large motors, this relay is ideal for industrial applications where reliability and performance are paramount.
